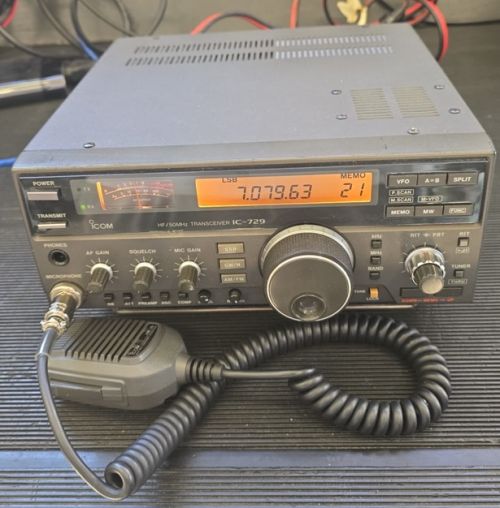

ICOM IC-729
€ 390.00
|
|
Descrizione
ICOM IC-729 RICETRASMETTITORE HF-50 MHZ ALL MODE 100W
L'IC-729 è un ricetrasmettitore HF/50 MHz compatto che copre le 9 bande radioamatoriali dai 160 ai 10 metri con una potenza in antenna di 100 Watt e la banda dei 6 metri con 10 Watt nella regolazione massima. Ricevitore a tripla conversione, passo minimo di sintonia e risoluzione sul display 10 Hz, preamplificatore ed attenuatore RF, PBT, Noise Blanker, RIT, CW break-in, compressore vocale, operativo cross mode ed in split su due frequenze, strumento S/RF analogico, 26 memorie, registro con l'ultima frequenza usata per ogni banda, tre tipologie di scansione. Anno di introduzione 1992, paese di ideazione Giappone.
Tipologia : uso radioamatoriale
Specifiche IC-729
| Frequency coverage |
| Receive |
0.5000 ~ 30.0000 MHz
50.0000 ~ 54.0000 MHz |
| Transmit |
1.8000 ~ 1.9999 MHz
3.5000 ~ 4.0000 MHz
7.0000 ~ 7.3000 MHz
10.1000 ~ 10.1500 MHz
14.0000 ~ 14.3500 MHz
18.0680 ~ 18.1680 MHz
21.0000 ~ 21.4500 MHz
24.8900 ~ 24.9900 MHz
28.0000 ~ 28.7000 MHz
50.0000 ~ 54.0000 MHz |
| Mode |
| CW / LSB / USB / AM / FM |
| Tuning step |
10 / 20 / 50 Hz / 1 kHz
1 MHz |
| Sensitivity |
| CW / SSB |
<0.16 uV (1.8~30 MHz, 10dB S/N, pre ON)
<0.13 uV (50~54 MHz, 10dB S/N, pre ON) |
| AM |
<13.0 uV (0.5~1.8 MHz, 10dB S/N)
<2.0 uV (1.8~30 MHz, 10dB S/N, pre ON)
<2.0 uV (50~54 MHz, 10dB S/N, pre ON) |
| FM |
<0.5 uV (28~30 MHz, 12 dB SINAD, pre ON)
<0.3 uV (50~54 MHz, 12 dB SINAD, pre ON) |
| Selectivity |
| CW-N [1] |
250 Hz (-6dB) |
| CW-N [2] |
500 Hz (-6dB) |
| CW / SSB |
>2.1 KHz (-6dB)
<4.0 KHz (-60dB) |
| AM |
>6.0 KHz (-6dB)
<20.0 KHz (-40dB) |
| FM |
>12.0 KHz (-6dB)
<30.0 KHz (-50dB) |
| RF preamplifier |
| ~10 dB |
| RF attenuator |
| 20 dB |
| Spurious rejection |
| >70 dB |
| PBT (Passband Tuning) |
| Yes |
| NB (Noise Blanker) |
| Yes |
| RIT (Receiver Incremental Tuning) |
| ±1.2 kHz (10 Hz steps) |
| Frequency stability |
±200 Hz from 1' to 60' after power on.
±30 Hz/hr with temperature +25°C after 60' power on.
±350 Hz with temperature from 0°C to +50°C.
±0.5 ppm with temperature from -30°C to +60°C [3] |
| IF (Intermediate Frequency) |
| 1° |
70.4500 MHz (AM / FM)
70.4506 MHz (CW)
70.4515 MHz (SSB) |
| 2° |
9.0100 MHz (AM / FM)
9.0106 MHz (CW)
9.0115 MHz (SSB) |
| 3° |
455 kHz (FM) |
| Output power |
| CW / SSB / FM |
10 ~ 100 W (1.8~29.7 MHz)
1 ~ 10 W (50~54 MHz) |
| AM |
10 ~ 40 W (1.8~29.7 MHz)
1 ~ 4 W (50~54 MHz) |
| Spurious emission |
<-50 dBc (1.8~29.7 MHz)
<-60 dBc (50~54 MHz) |
| Carrier suppression (SSB) |
| >40 dB |
| Unwanted sideband suppression (SSB) |
| >50 dB |
| Microphone |
| 600Ω |
| CW features |
| Semi break-in |
| Memory |
22 regular memories
2 split memories
2 for scan edge
2 VFO |
| Display |
| 10 Hz frequency resolution |
| Selective calling |
| CTCSS [4] |
| Antenna |
SO239 50Ω (1.8~29.7 MHz)
SO239 50Ω (50~54 MHz) |
| Power supply |
| 13.8 VDC (±15%) |
| Power consumption |
1.3A RX (squelched)
1.6A RX (max audio)
20A TX (max RF power) |
| Audio power |
| 2.6W on 8Ω |
| Audio output |
Jack 6.35 mm (headphone)
Jack 3.5 mm (4~16Ω external speaker) |
| Connections |
Jack 8-pin (mic)
Jack 3.5 mm (CI-V / PC)
Jack 6.35 mm (CW key)
RCA (SEND control)
RCA (ALC input)
4-pin strip (AH3 or AT-160 antenna tuner)
7-pin DIN (ACC2)
8-pin DIN (ACC1) |
| Dati meccanici ed ambientali |
| Operating temperature |
| from -10°C to +60°C |
| Dimensions |
| 241 (W) x 94 (H) x 239 (D) mm, projections not included |
| Weight |
| 4.9 kg |
|
|
USATO
